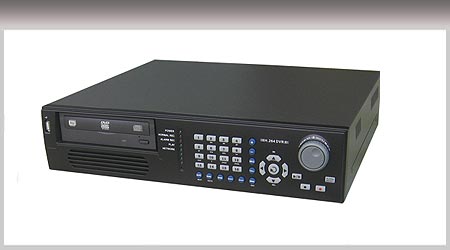

Solidex H.264 DVR
H 264 for faster transmission of images on network Hexplex DVR Real Time Display, Record & Replay Network & Internet built in & DVD writer for back up Remote event trigger, motion & scheduled recording Optional Hard Drive 500gb - 2000gb
Mouse control with GUI graphics
This is a 16CH H.264 real time Digital Video Recorder. It greatly maximizes the video quality and minimizes the file size (expand the storage capacity) with the feature of H.264 video compression technology. To quickly backup, the USB port is built in for your convenience, or the network backup is also available. It also supports the SATA HDD / VGA output & Graphic OSD display for your easy operation.
DVR1116 uses a free app called Cplayer, it is available on the Apple Store
Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Input 16 channels (Composite video signal 1 Vp-p 75O BNC)
Video Output (BNC) Main Monitor For stable display
Call Monitor For sequence display
Video Output (VGA) Built-in VGA interface for LCD monitor
Audio Input / Output 4 audio inputs, 2 audio output (Mono)
Maximum Recording Rate Frame 704×480 pixels 704×576 pixels with 50 IPS
Field 704x240 pixels with 120 IPS / 704×288 pixels with 100 IPS CIF 352×240 pixels with 240 IPS / 352×288 pixels with 200 IPS Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
Hard Disk Storage Accommodates 2 SATA HDDs (1 HDD capacity up to 2TB) Quick Search Time / Motion / Alarm search mode
SATA Interface Built-in
Recording Mode Manual / Timer / Motion / Alarm / Remote
Multiplex Operation Live display / record / playback / backup / network operations
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Pre-alarm Recording YES
Backup Device DVD Writer / USB 2.0 flash drive / Network
Web Transmitting Compression Format H.264
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Web Interface Licensed software Video Viewer / Internet Explorer, Mozilla Firefox or Google Chrome web browser / QuickTime player (10 users access simultaneously) Operating System: Windows 7 / Vista / XP / 2000
Network Protocol TCP/IP, PPPOE, DHCP and DDNS
Remote Independent Operation YES
Event Notification By FTP & E-Mail
R.E.T.R. (Remote Event Trigger Recording) YES
IR Remote Control YES (IR receiver built-in)
Mobile Surveillance
